NON INSULATED QUICK DISCONNECTS
Non insulated quick disconnects create a splice when fitted together or can terminate a connection to a terminal block. Quick disconnects can be connected or disconnected without damage to the terminal or wire, without the use of tools.
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Nema Tab: | 0.5 x 5.2mm (0.02 x 0.20") |
| Max Electrical Current: | 10AMP |
| Terminal Material: | Brass |
| Surface Material: | Tin-Plated |
| L: | 13.9mm (0.55") |
| F: | 5.6mm (0.22") |
| E: | 5.0mm (1.8") |
| W: | 5.5mm (0.22") |
| D1: | 1.8mm (0.07") |
| D: | 2.8mm (0.11") |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |

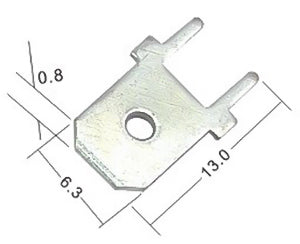

Product Drawing:
